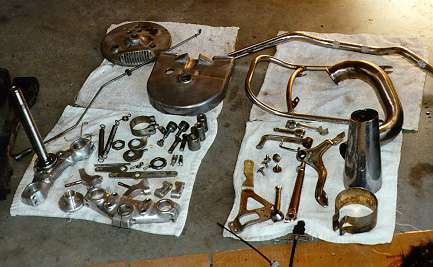

bigr-7.jpg (92006 bytes) various parts to be polished and re-chromed

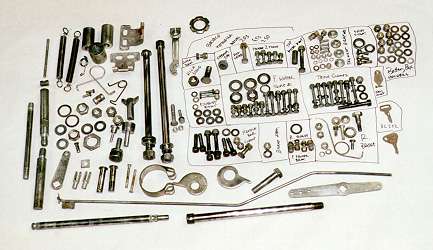

Some of the old nuts and bolts before getting sent off for re-plate.  We laid everything out, photographed and noted where each and every nut, bolt, washer, spacer etc came from to help us out with the reassembly.

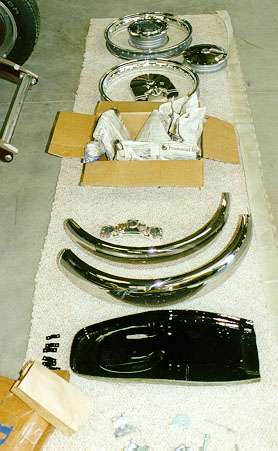

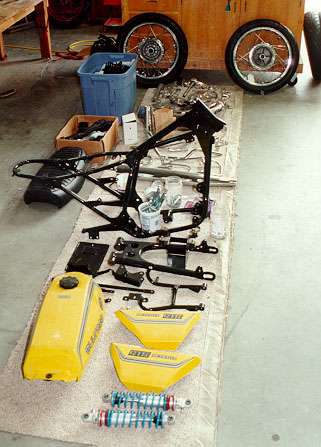

The above are the rebuilt, rechromed, replated, refinished, powdercoated parts (except for the tank and sidecovers) waiting assembly.....

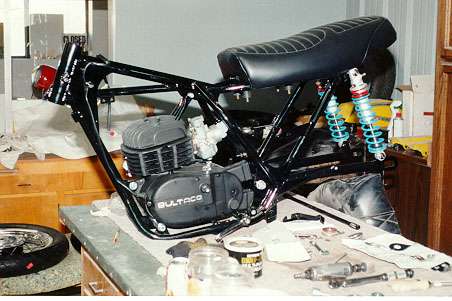

Assembly begins!  Lynn Mobley (president of SMOG) did an outstanding job rebuilding the motor and carb.  The frame/swingarm etc are powdercoated.  The seat has new foam and we made a new cover after refinishing the fiberglass base.  New WORKS shocks have been fitted....
